Forged Gr2 Titanium bar for medical equipment ASTM F67




Forged Gr2 Titanium bar for medical equipment ASTM F67

Forged Gr2 Titanium bar for medical equipment ASTM F67

1.  specification

ASTM B348 , ASTM F136/67,ASME SB348,AMS 4928, MIL

 Rolled Bars Dia. (2.0-45) * 1000mm

Forged Bars Dia. (50-400) * 6000mm

Length:  50mm~6000mm, as requested

 2. Features

Low density,High specific strength,Excellent corrosive resistance,Rustless,Good thermal stability, paper making, metallurgy, oil industry, Biological features,Plasticity,etc.

3. Applications

Chemical industry,Petroleum chemical industry, medical

Textile printing and dyeing,

Construction field, Decoration,Seawater desalination,

4. Technique parameter

Grade

Tensile Strength,min

Yield Strength, min

Elongation, min,%

Reduction of Area,min,%



Mpa

Mpa





Gr2

365

280

10

25

Chemical composition

Grade

COMPOSITION % (Max)



Ti

Al

V

Fe

C

N

H

O

Other

Gr2

Balance



0.30

0.08

0.03

0.015

0.25

0.40

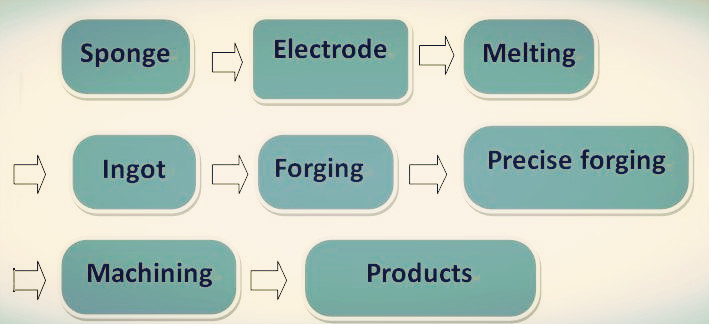

 5. Production flow

  Process Flow: Titanium sponge →Compacting electrodes→Melting→Forging→Billets→Precisely forging→Machining→Bars

6.quality assurance

We have  our own servious managment & QC system,  control quality from raw material sponge and every processes. We also have Quality Controlsystem.(Northwest Quality Supervision and Inspection Center for Nonferrous Metal Industry, Bureau Veritas, ISO9001: 2008 quality management system)
